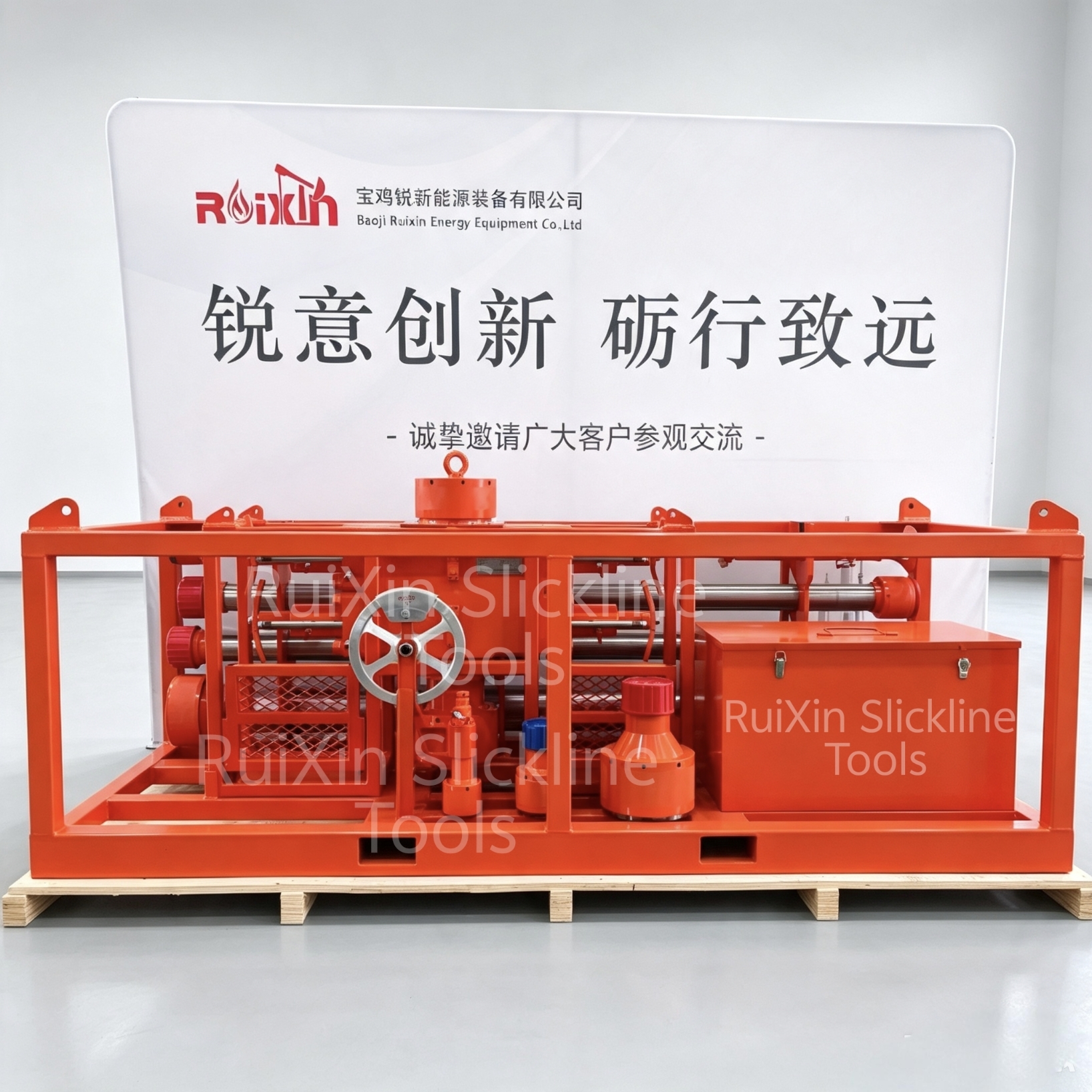

Slickline PCE Skid 10,000 PSI Wireline Pressure Control Equipment
Main technical parameters
Transportation skid-mounted unit
It is mainly composed of welded parts such as the frame, pressure plate and fixed seat .
Size (mm) 3440*1300*1265
Maximum gross weight 2760 kg
Steel wire Rope load 3000kg
Pay load 1900kg
Tare mass 860kg
BOP
Bop is 6-3/8"Tube ID, 10, 000psi WP, H2S service, doubie ram, 11-1/2"quick unions top and bott.om and three sets of rams
It can be replaced as needed (including shear/blind rams) for 0.125-inch Slickline and braided line operations.
Hydraulic stuffing box
Pulley diameter: 16" Apply the biggest wire specifications: 0.125 "; Safe load: 25 KN (12.5 KN wire); Working Pressure: 70 mpa; Connection 4-3/4-4ACME DL, type B.
Light weight Lubricator
Size 6.38″×10ft ID : 162; Working Pressure: 70 MPa; Strength test: 105 MPa; Connection type: 11-1/2 - 4 ACME.0 type.
Size 4″×10ft ID : 102 Working Pressure: 70 MPa; Strength test: 105 MPa; Connection type: 6-1/2-4ACME.
Wireline Grease Injection Control Head
Working force: 70 MPa; Cable diameter 3/16″～15/32″ Connection type 4-3/4-4×2 ACME .B
It can be equipped with 3 to 9 grade flow-blocking tubes at will.
Crossover Quick Union
ID 4″ Upper part Connection 6-1/2-4ACME .0 Type Bottom Connection 11-1/2-4ACME.0 Type Working Pressure 10KPSI
ID 76.2mm Upper part Connection 4-3/4-4ACME DL.B Type . Bottom Connection 6-1/2-4ACME.OType. Working Pressure 10KPSI
Any size can be customized according to customer requirements
This device is also equipped with a pulley and a ground pulley. The wire hoist includes a lifting plate, a parallel clamp, a wire rope, and a shackle. There is also a hand pump and a pipeline.
Please pay attention to daily maintenance and care, and wear the threaded protector when storing.
◆About Baoji RuiXin Slickline Tools
Baoji Ruixin Energy Equipment Co., Ltd. was established in 2012. It is an IS0: 9001-2015 and API Q1 system certified technology research and development organization specializing in the design and manufacture of steel wire, cable and coiled tubing tools. With strong new product research and development capabilities, it has obtained 12 national utility model patent certificates and 1 invention patent certificate. Undertook two prefecture-level and provincial-level scientific research projects. Our products include wireline wireline wellhead blowout prevention equipment, wireline downhole tools and coiled tubing downhole tools. At present, we have provided professional equipment and technical support to more than 50 oilfield service companies in various regions at home and abroad.
◆Strict quality control system
Steel wire working tools are certified by API, and all manufacturing are strictly in accordance with API system, including quality control management, environmental management and occupational health and safety management. For each wire working tool and each part, we have achieved traceability from raw materials, production process to product shipment.
◆Hard work, after-sales service
On-site technical guidance exchanges with each other. Our sales and technical personnel communicated well with front-line engineers and technical experts on the job site, and solved technical problems such as material selection, sealing structure optimization, and accident handling in complex environments. And carried out many technical exchanges and friendly cooperation. We have done a good job of product after-sales service for customers, and we provide customers with more satisfactory services. We would like to thank more and more customers for their support and trust. In the future, we will do better.
Welcome to contact us at any time.
